Live Channels Page Manual 3.0

Access to this menu in Betools through: Live > Live Channels

This menu allows you to review all the Live TV Channels and the settings associated to them.

Blocks

Live Channel

---

Live Channel basic information

Field	Description	Restrictions
Name	Internal name. Not displayed in end user apps	-
Title	Title to be displayed in end user applications	-
Call Letter	Channel Call Letter	-
Channel Number	Default dial number of the channel. Take into account that if the channel belongs to a channel map, the number of that channel in the channel map will be used instead	-
Reference ID	Internal ID. It is the reference of the channel in the EPG file.	-
Description	Description to be displayed to the user	-
Source	Controls the access and visibility of this live channel for other operators. Only operators with rights over this source or its children will be able to see it.	Read Only
Instance	Instance where the live channel belongs to.	-
Active	Flag that allows to activate / deactivate a channel	-
Requires PIN	Flag that indicates if the Live Channel is Adult content or not.	-
Provider Channel	Allows selecting an existing VOD related channel.	-
LXD Channel	Allows selecting an existing channel to L7D related.	-
Transparent Distributor (for reporting)	Allows selecting an existing distributor for reporting.	-	-
Distributor (for concurrency)	Allows selecting an existing distributor from GVP_MOVIES_TRANSPARENT_PROVIDERS table.	-	-
Timeshift	Allows to enable/disable Mediaroom Timeshift functionality in this channel.	Mediaroom Only	-
PPV	Indicates if it is a Pay Per View channel	-
Pending catchup sync	Read only field used by the catchup agent in the Catchup generation process. If set to true, means that the Live Channel is pending a catchup sync process	Read only
Pending catchup device availability sync	Read only field used by the catchup agent in the Catchup generation process. If set to true, means that the Live Channel is pending a catchup device available sync process, because some Live Channel device availability settings have been modified	Read only
Last Catchup Sync Date	Date of the last catchup sync	Read only
Is External	Flag that at allows you to select if the CDN Live is an External or not (indicating the player that it should use a redirect to the URL provided).	-
Resource Id	External Resource ID used for External Live OTT, for handling authorization requests.	-
RestartTV Window Duration	Indicates the time in the past (in hours) that the client can perform RestartTV to play again past programs. Default value is 0. If set to 0, means no restart tv window.	-
Channel Type	Type of channel. GLF defines an optional attribute for the channels, which is the "t" attribute, to define the channel type. Live: Default value, associated when "t" attribute is not present for a channel, when the channel is assigned (in EPG) values "Live", "Broadcast"... or any unknown/unexpected value. PPV: Assigned to a channel when EPG marks the channel as t="PPV" (case insensitive) App: Assigned to a channel when EPG marks the channel as t="app" (case insensitive)	-
App URL	Allows to configure the URI for launching the application	Warning is shown if the Channel Type = App and App URL is left empty.
Hidden flag	Used to mark channels that must not be shown in the STB (substitution channels in blackout functionality).
Has Subtitle	Checkbox for operators to inform if the live channel has subtitles or not.
FOX Channel Mapping	Allows selecting an existing channel maps for FOX distributor.	Only enabled when Transparent Distributor is FOX.
Advanced CDN Services	Allows signal to devices whether the pause is available through CDN for this channel or not.

Jobs Workflow

This block shows the detail of the works related to the channel

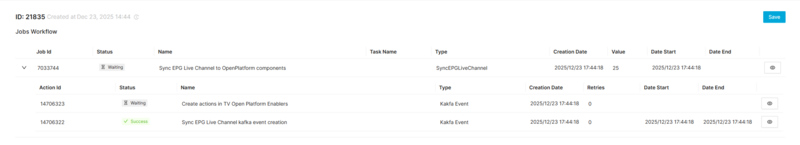

Jobs Worflow block

Catchup Pod Settings

---

In this block you can manage the Catchup settings associated to this channel, used for configuring the Catchup service.

Catchup settings block

You can configure the following fields:

• Catchup POD Settings: Allows you to select the specific POD Settings to the Live Channel. You can define new POD settings in the POD Settings page
• Catchup Enabled: Defines if the Catchup service is enabled or not for that Live Channel.
• Override Default Settings: Configures if you want to configure specific Catchup settings in this Live Channel that will override the Catchup settings defined at Instance level.
  • Window duration: In hours, represents the length of catch up window, this is, the number of hours that will be kept recorded in the past.
  • Window Start: In minutes, represents the time after the end of the program where the catchup movie will become available:
    • 0 when the program finished,
    • N the number of minutes after which the program has ended.
  • Start Padding: In seconds, represents the start padding that will be added to the start time of the program to ensure that the whole program is recorded.
  • End Padding: In seconds, represents the end padding that will be added to the end time of the program to ensure that the whole program is recorded.

Once you have finished with the modifications, save changes with the button in the live channel page.

Device Type Availability

---

This blocks allows you to manage the availability of this Live TV channel and its servcies associated (Playback, Catchup, Startover, RestarTV) in the different device types in the instance it belongs to.

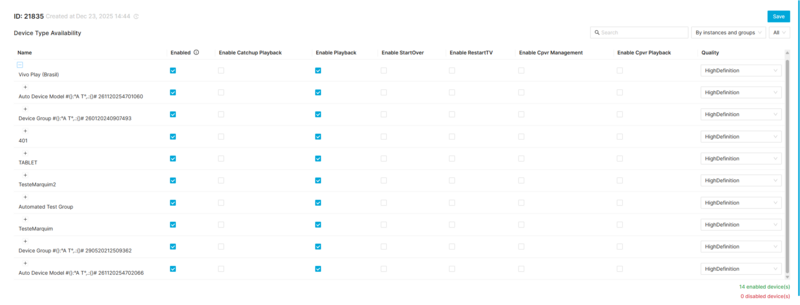

Live channel device availability block

The block has been totally refactored in MIB 3.0, with the objective of simplifying the operation. Each row allows you to control the availability of the Live channel services for each device type of its Instance. You can also configure the Quality that will be available for each device. The services that you can configure are:

• Enable Playback: controls if the Live OTT playback of that live channel is enabled for that specific device. If it is disabled, the user wont be able to play this live channel in that specific device type.
• Enable Catchup: controls if the playback of 7UD catchup contents of that live channel is enabled for that specific device type.
• Enable Startover: controls if the playback of 7UD catchup contents of that live channel is enabled for that specific device type.
• Enable RestarTV: controls if the playback of 7UD catchup contents of that live channel is enabled for that specific device type.

Configure service availability for a device type
The sliding button allows you to enable/disable that specific service. It has 3 different positions:

The devices contained are enabled.

The devices contained are disabled.

Mixed. Some devices contained in sub-levels might be enabled and others disabled.

Once finished, apply changes using the button in the VOD Channel page.
Configure service quality for a device type

Quality selector

The quality selector allows you to configure the quality that will be available for an specific level. Once finished, apply changes using the button in the VOD Channel page.

Adding a new device type

1. Use the button and multiple selection window will open to select some device types from the instance to be added. You can also use the CREATE FOR ALL button to create entries for all the devices of the instance that are not configured yet.
2.  Select the device types you want to add and press the button.
3. Now configure the service availability for those device types and the quality and press the on the Live Channel page to apply changes.

Removing a device type

• Use the button to remove an device type entry.
• Once finished, save changes by using the in the live channel page and the availability will be removed.

Subscription Info

---

This block shows the different purchases made by the user over time, displaying the product type, name status and its price. The fields are described below:

• Product Id - The product ID.
• Product Type - The type of product
• Name - The product name.
• Date Start - Date when the rights were given.
• Date End - Date when the rights will be removed.
• Status field - Same status as in User Rights
• Payment Type - Same as in User Rights
• Transaction - ID of the transaction, each transaction in GVP has a unique ID transaction.
• Price - Price of the product bought.
• Quality - The max quality that the product was purchased with.
• PricingModel - ID of the pricing model used on this purchase.

Subscription Event Collections block

Images

---

This block allows you to manage the images associated to the live channel and the information associated, such as the Type and Quality.

Images block

Add new images

Upload image dialog

• Use the button and a new row will be added so you can upload the new image.
• Then click the button and a dialog will be open so you will be able to select the image to be uploaded.
• Now select the subtitle language and a name for the subtitle.
• Once finished, save changes by using the in the movie page and the subtitle will be associated.


Add existing images

• Click the button and a dialog will open to select and existing image.
• Once finished, save changes by using the in the movie page and the image will be associated.


Image preview

Remove images

• Use the button to remove the association of a image from the movie .
• Once finished, save changes by using the in the live channel page. This will not delete the image file from the platform. In order to delete the image, you will have to go to the Images Page.

Preview images
By clicking in the button in each image, you can access to the image preview.

Audio and Subtitles

---

This block allows defining specific default languages selection for audio and subtitle. In case it's not set default per instance is considered. It only applies when users don't define their own preferences.

Audio And Subtitles Block

Add new record

• Use the button and a dialog will be open so you will be able to select the language to be saved.
• Now select the subtitle and audio languages.
• Once finished, save changes by using the in the lives channel page and the record will be associated.


Movies Criteria

---

This blocks allows you to select those VOD Contents (Movies, Series, Seasons and Episodes) that will be available inside this channel. To do this, the operator is able to define a set of rules, called Content Criteria Filters that will be evaluated during the Catalog Exporter process. All the Movies that match the specified filters will be linked to this VOD Channel.

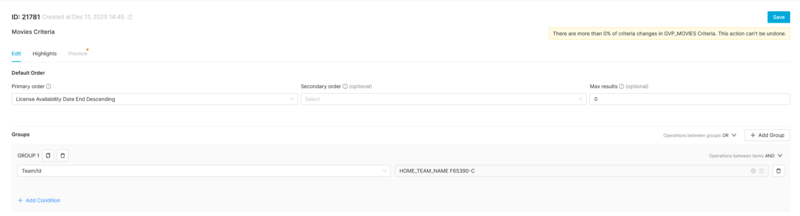

Movies content criteria block

Create new Content Criteria
It is really easy to create a new content criteria. You only have to build an expression by combining filters that will be evaluated to select the movies that match. The expression will be composed of one or more Groups each of them composed of one or more filters and the AND/OR relationship between them. Example:

Group1 = FilterA OR FilterB
Group2 = FilterC
Content Criteria = (Group1 AND Group2) = ((FilterA OR FilterB) AND FilterC)

1. First add a new Group by clicking on the button.
2. Then add a new Filter by clicking on the button.
3.  Select the type of filter from the list and fill the value for the filter. There are multiple filter types available and you can combine them as you want. Some examples of filters are:
   • Commercialization Type
   • Content Category
   • Distributor ID
   • Episodes by SeasonID
   • Episodes by SearieID
   • Genre ID
   • Instance ID
   • Last X days
   • Movie Type
   • Person Role
   • etc.
4. Continue adding as many filters as desired to build the first group expression.
5. When you have added all the filters for the first group, select the operator (AND / OR) that will be used to link the filters for that group.
6. Now you can add a new group, go back to 1. When you have finished adding groups, select the operator (AND / OR) between the different groups.

Once finished you can continue to the Highlights section, Orders section or Preview. Save changes at anytime by clicking on the in the VOD Channel page.

Highlight content
In the new content criteria, you can select some content to be highlighted. This highlighted content will be returned first when ordering the Default order is selected in the VOD channel. To do it, follow this steps:

1. First click on the button to select movies to be highlighted.
2. A page will open allowing you to search over the different movies you have access to. Important: You will be able to select ANY movie from the list of movies you have access to. The movie will be returned independently on the Content Criterias that you have defined in the block. Of course, if duplicated, the content will be returned only once, highlighted.
3.  Select one or more contents to be added. It is important to understand that the highlighted contents will be ordered depending on the order they are added. So add first the contents you want to be highlighted first. In the current version of this block, it is not available the [manual ordering of highlights], it will be added in future versions.
4. Save changes at anytime by clicking on the in the VOD Channel page.

Highlights selection in Content Criteria block

Define default ordering and maximum number of results
In the new content criteria, you can also define the maximum number of results to be returned and the behavior of the default ordering and select what ordering criteria should be applied for those contents.

1. First click on the Default Order section
2. Select the primary ordering criteria from the list available:
   • Default: Ordered by ID
   • Editorial Rating : Ordered by movie Editorial Rating value
   • Episode / Season Order: Ordered by movie.order value
   • Most Rated: Ordered by rating value
   • Popularity: Ordered by views value
   • Release Date: Ordered by movie release date value.
3. You can also select a secondary ordering criteria, in case some movies match the primary order criteria
4.  It is also possible to define a maximum number of results to be returned by the criteria. By default, it is set to 0 (unlimited).
5. Save changes at anytime by clicking on the in the VOD Channel page.

Order section in Content Criteria block

Content Criteria Preview
At any time you can go to the Preview tab and evaluate the results of the Content Criteria.

Preview section in Content Criteria block

CDN Lives

---

This block is read only mode and shows the linked CDN Lives for such live channel.

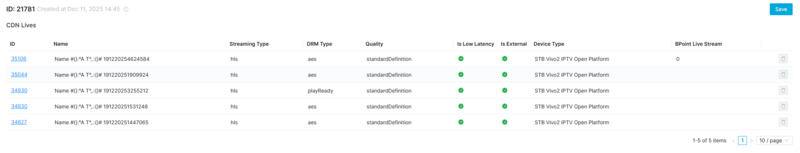

CDN Lives block

Media Services

---

This block allows to manage the different Media Services that are associated to this Live Channel.

Media Services block

Add new Media Services

1. Click the button and a new row will be added so you can create new Media service
2. Fill in all the required information for the Media Service
3. Once finished, save changes by using the in the Live Channel page and the Media Service will be created and associated to the Live channel.


Add existing Media Services

1. Click the button and a dialog will open to select an existing Media services.
2. Once finished, save changes by using the in the Live Channel page and the Media Service will be created and associated to the Live channel.


Remove Media Service

• Use the button to remove the association of a Media service with this channel .
• Once finished, save changes by using the in the Live Channel page. This will delete the Media Service.

Actions

Create	Edit	Edit in List	Bulk Edit	Copy	Copy with Relateds	Delete

Create

Live Channel creation is not allowed to be done from MIB. Live Channels can only be created through EPG ingestion.

Edit

Live channel modifications are enabled for some operator profiles (EPG Manager, OB Admin). It can be used to perform modifications in some of the Live Channel related data.

Edit in List

Edit in list is disabled for Live Channels for security reasons. You have to go to Edit Page to perform any modification.

Bulk Edit

Bulk Edit is disabled in the Live Channels page.

Copy

Copy is disabled for Live Channels as their creation from MIB is not allowed.

Copy with Relateds

Copy with Relateds is disabled for Live Channels

Delete

Live Channels can be deleted using the button. A popup will be shown asking for confirmation. If you continue with deletion, the channel and its related informaiton will be deleted from the platform.
