Access to this menu in Betools through: LiveTVIcon.png Live > Live Channels > CDN Lives



This menu allows you to review the CDN Lives configurations, that allow to configure playback of Live TV channels through OTT (CDN).

Blocks

CDN Lives

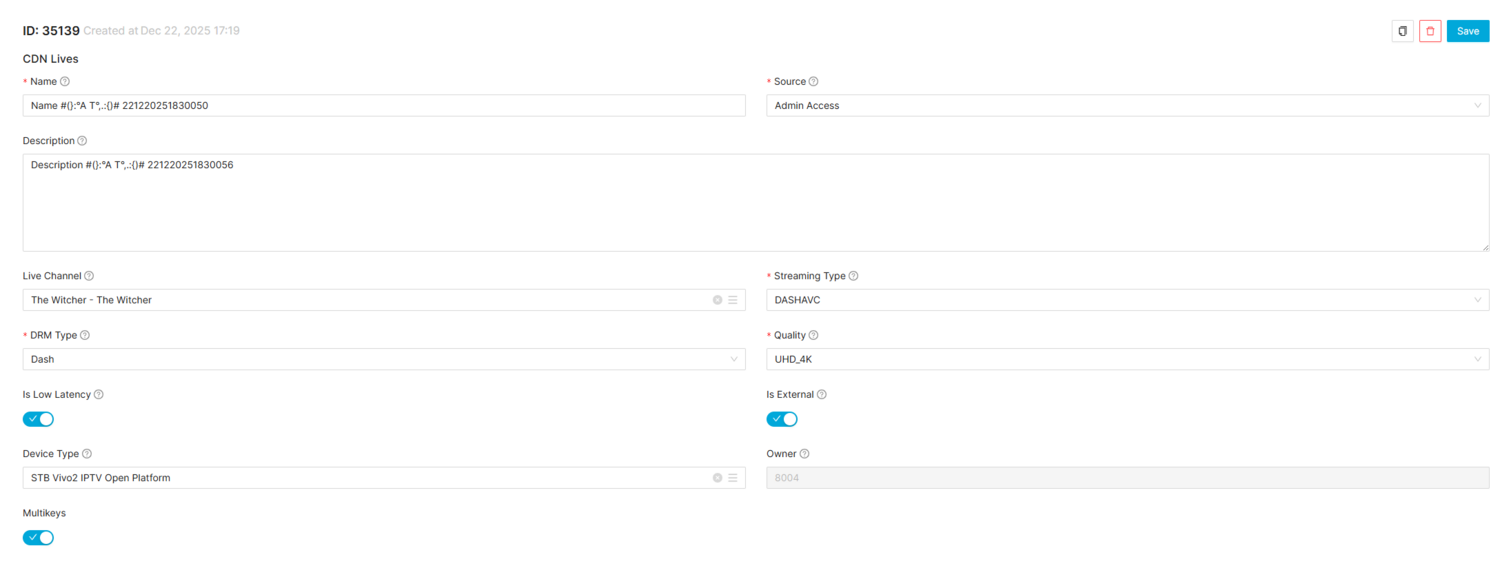

CDN Lives page


Field Description Restrictions
Name Internal name. Not displayed in end user apps -
  • Mandatory
Source Controls the access and visibility of this CDN live for other operators. Only operators with rights over this source or its children will be able to see it. -
  • Mandatory
Description Only for operator annotation. -
Live Channel Live channel which this CDN Live is associated to. -
Streaming Type Allows you to configure the ABR streaming protocol:
  • DASHAVC
  • DASHHEVC
  • HLS
  • Smooth Streaming
  • Unknown
 -
  • Mandatory
DRM Type Allows you to configure the type of DRM:
  • AES encryption (no DRM)
  • Dash
  • FairPlay
  • PlayReady
  • PR-Envelope
  • Widevine DRM
  • Unknown
 -
  • Mandatory
Quality Allows to configure the quality of this stream. -
  • Mandatory
Is Low latency Flag to indicate if it is Ultra Low latency (to deferentiate with legacy ones). -
Is External Flag to indicate if the CDN Live is an External CDN Live or not (indicating the player that it should use a redirect to the url provided). -
  • Mandatory
Device Type Allows to define this CDN Live for an specific Device Type. Null / Empty will mean that this CDN Live will be available for all device types -
Owner Operator that created this CDN Live Read Only
Multikeys Flag to enable Multikeys for Live Streams -


DRM Protection

Allows to set DRM Protection for that Stream. The user can generate a new key or associate with an existing one.

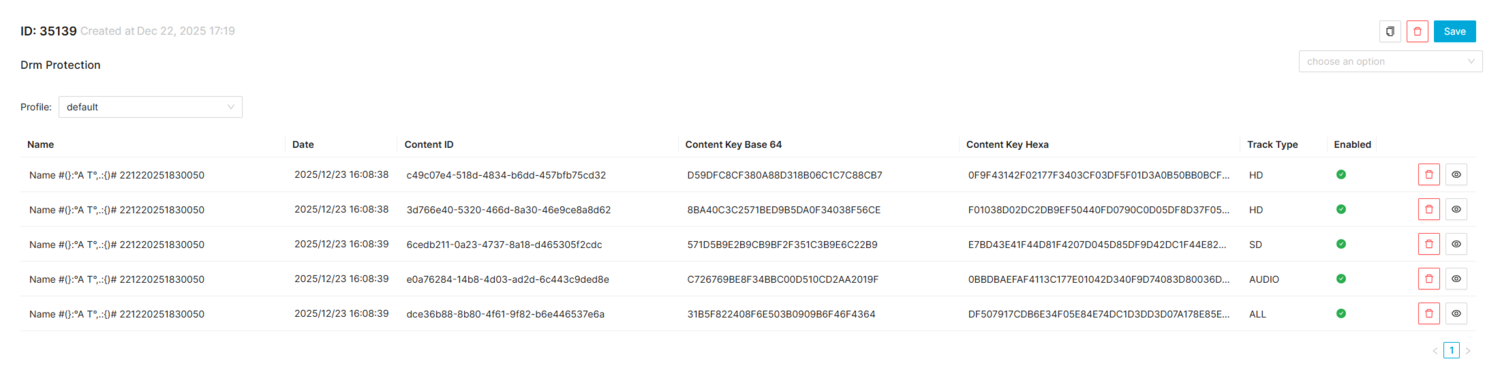

DRM Protection editor


DRM Protection fields are described below:

  • Profile - Pick a profile. Each profile will have a set of Track Types. (Example: Default, Sports)
  • Name - Name.
  • Date - Date.
  • Content ID - Content ID.
  • Content Key Base64 – Content Key Base64
  • Content Key Hexa – Content Key Hexa.
  • Track Type - Example: AUDIO, HD, SD.
  • Enabled - Enabled.


  • Profile Selection:

This dropdown contains PROFILE options. The available options are dynamically loaded from the backend, specifically from the profileOptions property in VALUE. A validation check ensures that these values are properly populated. It's important to note that the PROFILE field is not part of the MEDIATYPE (GVP_CONTENT_KEYS) of the DrmProtection component but instead belongs to the MainForm (CDN_LIVES). However, we still need it within DrmProtection for critical backend validations. Therefore, we always keep it updated with the user's selection.

Clicking on the "Choose an Option" select will display two action options: Select Existing and New Generate Key

  • Select Existing: Allows the user to select an existing key.
  • New Generate Key: Enables the creation of a new key.


In each row, we will have two buttons:

  • Remove Button: Use the DeleteRed3.png button to remove key.
  • View Button: By clicking in the Preview.png button in each key, you can preview Contents Protection and PSSH Box Content.

BPoint Editor

In BPoint Editor you can provide the CDN url configuration for Live OTT playback of this CDN live.

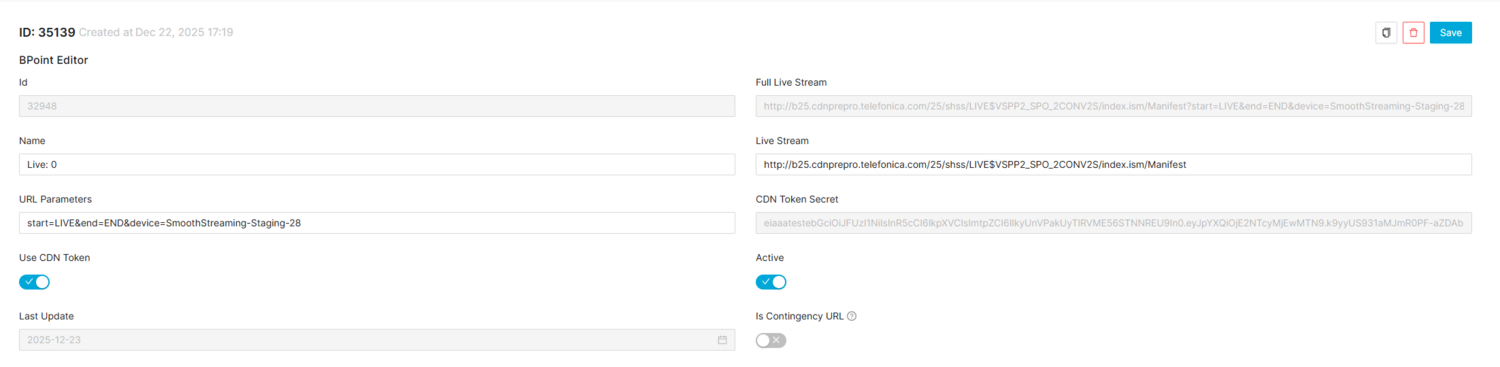

BPoint editor


BPoint Editor fields are described below:

  • Full Live Stream - URL with full live stream.
  • Name - Name of the channel.
  • Live Stream - URL to watch the channel.
  • URL Parameters - Custom URL parameters.
  • CDN Token Secret – CDN Token.
  • Use CDN Token – Flag to activate/deactivate the use of CDN Token.
  • Active - The checkbox should be checked to the channel be active and unchecked to be inactive.
  • Last Update - (Read Only) The date and time of the last update.



Actions

Create Edit Edit in List Bulk Edit Copy Copy with Relateds Delete

New3.png Create

CDN lives can be created by most of the operator profiles (EPG Manager, OB Admin). Use the New3.png button to create a new CDN live and configure it. Once finished, save changes by using the Save3.png in the CDN live page.

BulkEdit3.png Edit

CDN lives modifications are enabled for some operator profiles (EPG Manager, OB Admin). It can be used to perform modifications in some of the CDN Live related data. Once finished, save changes by using the Save3.png in the CDN live page.

Edit3.png Edit in List

Edit in list is disabled for CDN Lives for security reasons. You have to go to Edit Page to perform any modification.

BulkEdit3.png Bulk Edit

Bulk Edit is enabled in the CDN Lives page, allowing you to modify several channels at the same time. When performing bulk changes, only the Basic CDN lives information can be modified in this edit mode.

Copy3.png Copy

Copy is enabled for CDN Lives. Use the Copy3.png button to copy a CDN live into a new one. Only the basic CDN live information will be copied.
Once finished, save changes by using the Save3.png in the CDN live page.

CopyWithRelateds3.png Copy with Relateds

Copy with relateds is enabled for CDN Lives. Use the CopyWithRelateds3.png button to copy a CDN live into a new one. Only the basic CDN live information will be copied.
Once finished, save changes by using the Save3.png in the CDN live page.

Delete3.png Delete

CDN lives can be deleted using the Delete3.png button. A popup will be shown asking for confirmation. If you continue with deletion, the CDN live and its related information will be deleted from the platform.
